NC62/NC82
Home Products Ceiling Speakers
MODERN DESIGN
GREAT PERFORMANCE

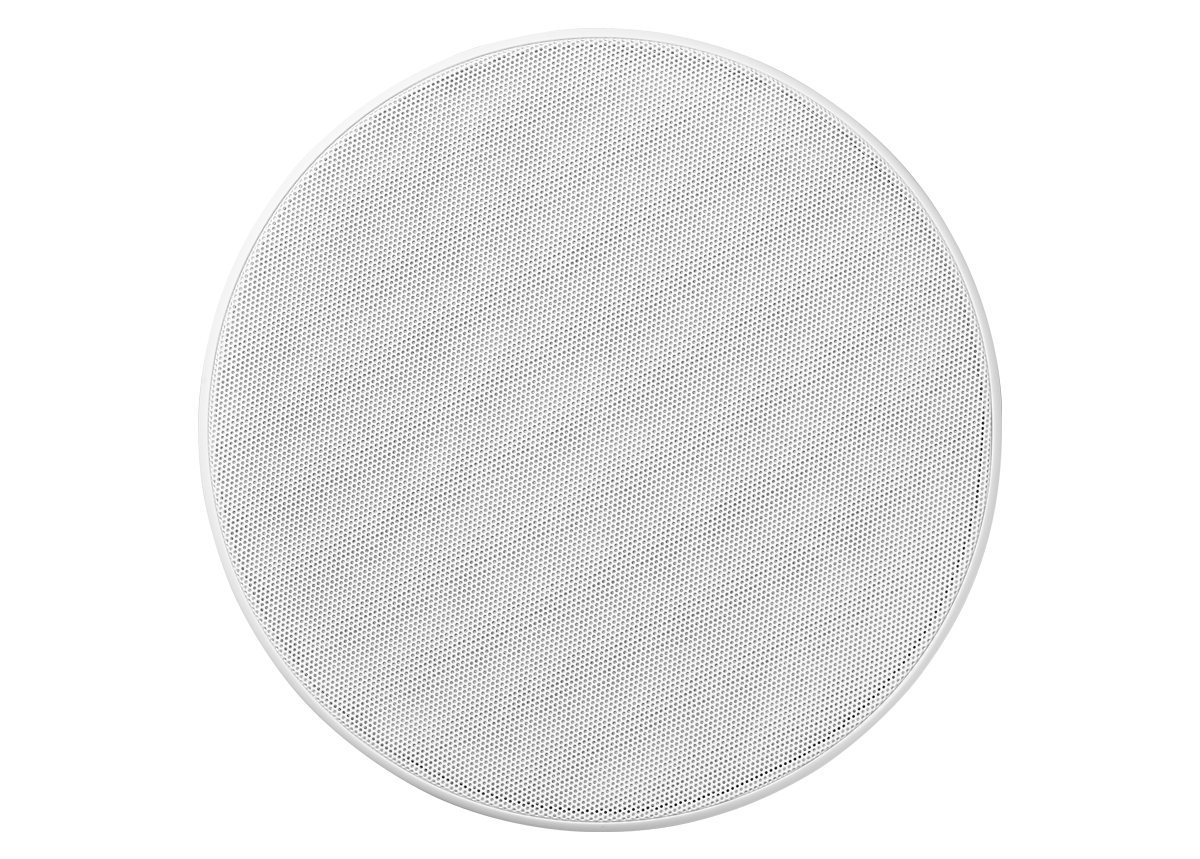

MAGNETIC GRILLE
Technical Parameter
| Model | NC62 | NC82 |
| Woofer | 6-1/2″ polypropylene or kevlar | 8″ polypropylene or kevlar |
| Tweeter | 1″ ferrofluid cooled silk dome | 1″ ferrofluid cooled silk dome |
| Power handling | 120Watts | 150Watts |
| Frequency response | 45-20,000Hz | 30-20,000Hz |
| Sensitivity | 89dB@1W/1M | 89dB@1W/1M |
| Impedance | 8 Ohms | 8 Ohms |
| Dimension(DiaxD) | 235x92mm/9-1/4″x3-5/8″ | 278x89mm/11″x3-7/8″ |
| Cutout size(Dia) | 209mm/8-1/4″ | 252mm/10″ |
| Mounting depth | 90mm/3-1/2″ | 95mm/3-3/4″ |
